Vertical Glass Cutting Plotter
Vertical plotting and cutting support for workshops that need efficient glass-sheet positioning with a compact floor-space arrangement.
Vertical plotting and engraving with a compact footprint.

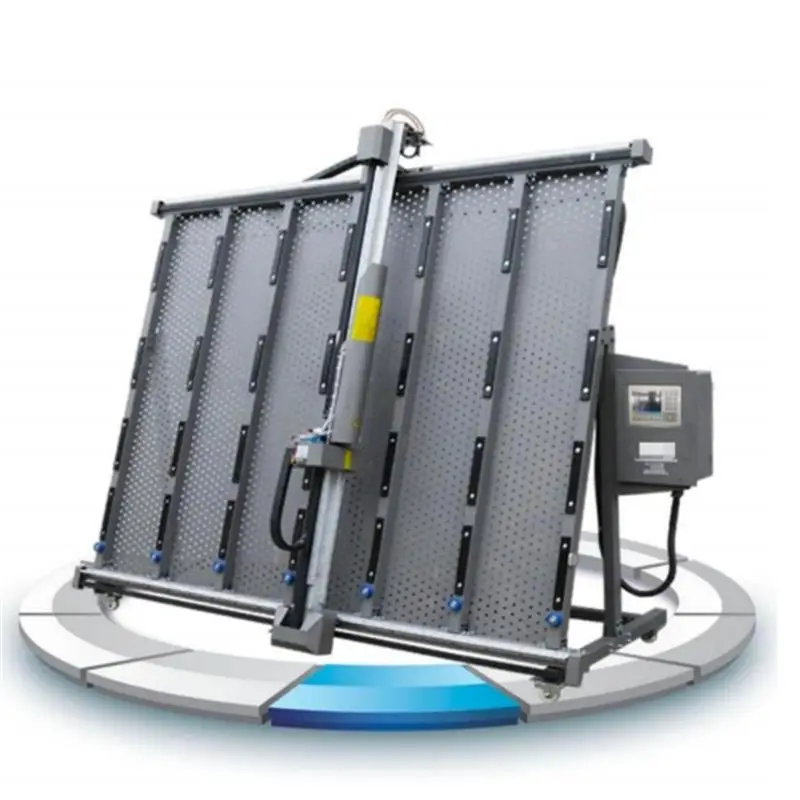

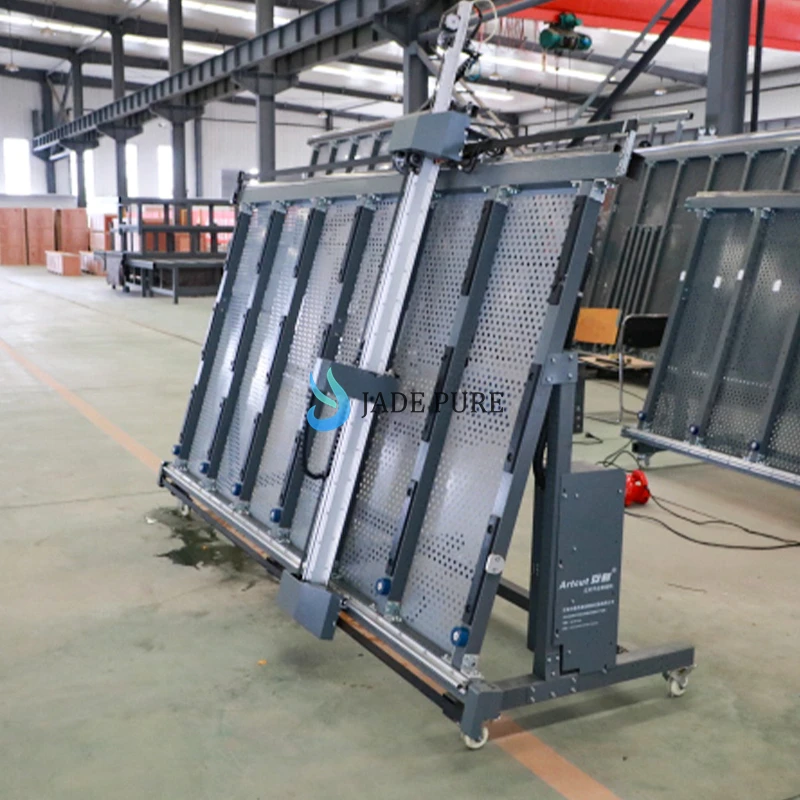

The vertical glass cutting plotter supports layout, engraving and selected cutting preparation while holding the sheet upright. It is intended for mirror, decorative glass and custom-processing workshops that want to reduce floor-space use and handle common sheet sizes in a vertical position.
The source specification lists blade models C1000D, C2000D and C3000D, plus laser-equipped H-series variants. A straight lifting blade system, adjustable pressure, positioning support and a steel-wire synchronous belt are described for repeatable movement and easier maintenance.
Configuration options
- C1000D for a documented maximum format of 1220 x 2440 mm.
- C2000D for a documented maximum format of 1830 x 2440 mm.
- C3000D for a documented maximum format of 2000 x 3300 mm.
- Blade configuration or H-series laser configuration by process requirement.
- USB, network or G-code workflow depending on the selected control version.
Design and production notes
- Protective-film glass and mirror applications should be sample-tested for tool pressure and finish.
- Confirm whether the required operation is plotting, film cutting, engraving or glass scoring.
- Sheet support, loading clearance and safe operator access must be planned around the largest size.
- Electrical specification and control interface vary by model and must be confirmed on the quotation.
- Files, patterns and expected production speed should be reviewed before model selection.
Technical overview.
Use this summary to prepare an inquiry. Final values, tolerances and compliance requirements are confirmed in the written quotation and approved drawing.
- Blade models
- C1000D, C2000D and C3000D.
- Maximum formats
- 1220 x 2440, 1830 x 2440 or 2000 x 3300 mm by model.
- Rated power
- 180-250 W in the source specification.
- Electrical supply
- AC 90-220 V for the documented blade models.
- Processing data
- Up to 16 m/min and 0.1 mm stated accuracy for the documented configuration.
- Control interface
- HP-G / G-code for the documented blade configuration.
Frequently asked questions.
These answers explain the normal selection process. Send the project drawing or sample when a definitive technical answer is required.
Which model matches a full-size sheet?
Choose from the documented working formats only after confirming the actual stock dimensions, loading clearance and required process. C3000D is the largest listed blade model.
Is this the same as an automatic cutting table?
No. A vertical plotter is aimed at upright layout, engraving, film cutting or selected scoring tasks. A production cutting table is a different category and should be quoted separately.
Can I send my own design files?
Yes, subject to the selected controller and supported format. Send sample files so the workflow and conversion requirements can be confirmed.
