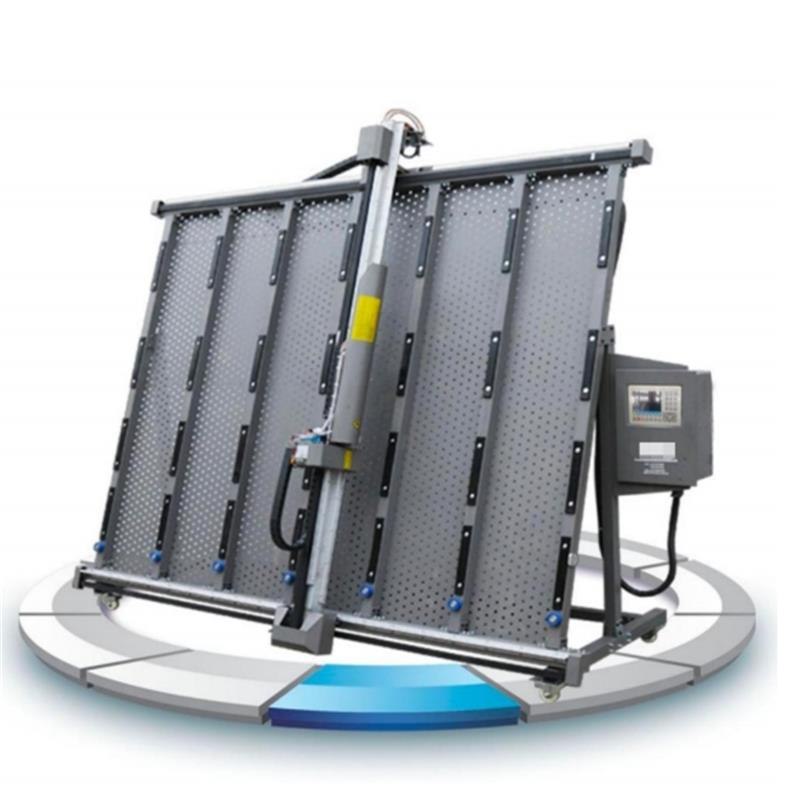

Glass Cutting Machine
Automatic flat-glass cutting systems for 2700 x 2100 mm through 6100 x 3300 mm sheets, available as standalone CNC tables, integrated loading-and-cutting machines or complete cutting lines.
Automatic cutting systems matched to sheet format and factory flow.
The documented range covers CNC2721 and CNC3826 standalone cutting tables, YTJ2721 and YTJ3829 integrated loading-and-cutting machines, and LSX4228 and LSX6133 complete cutting lines. Maximum glass formats extend from 2700 x 2100 mm to 6100 x 3300 mm, depending on model.
All configurations are designed for automatic glass scoring and cutting from optimized cutting data. Available functions include automatic edge finding, special-shape template scanning, pressure control, automatic oil supply, air-float handling, breakout assistance and glass transfer. Optional automatic labelling and Low-E coating removal can be specified when required.
Configuration options
- CNC2721 or CNC3826 standalone tables for factories with an existing loading and breakout workflow.

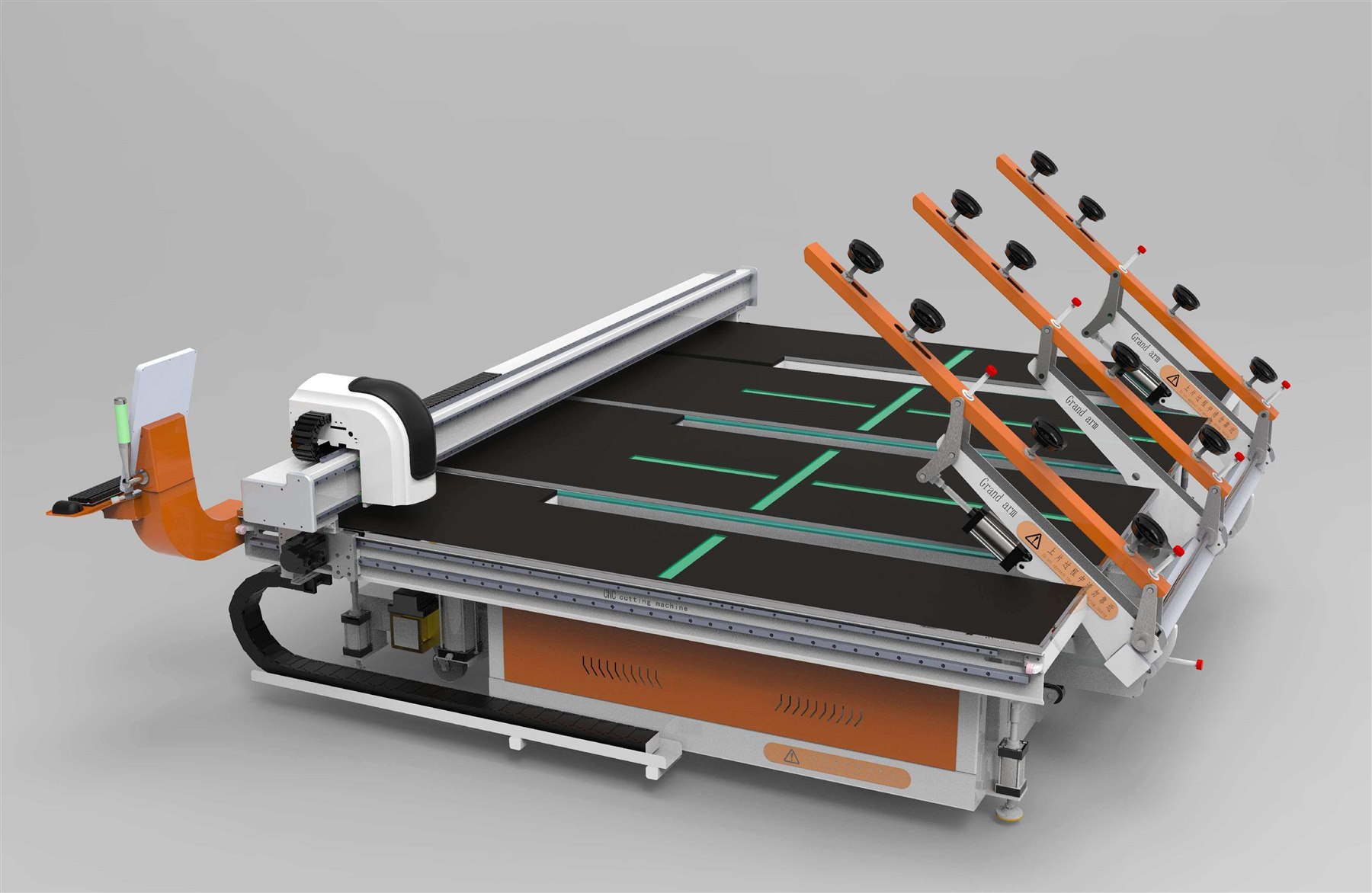

- YTJ2721 or YTJ3829 integrated machines with telescopic loading arms, automatic sheet pickup and CNC cutting.
- YTJ3829 supplied either with ejector-pin breakout assistance or with a separate air-float breaking table.
- LSX4228 or LSX6133 lines combining automatic loading, cutting, conveying and a dedicated breaking table.
- Optional automatic labelling and 20 or 25 mm Low-E coating-removal wheel, subject to the selected control package.
Design and production notes
- Send the largest stock-sheet size, normal thickness range, glass type and expected sheets per shift.
- Provide the factory plan with storage racks, columns, doors, loading direction and downstream equipment.
- Confirm whether loading must be automatic and whether a separate air-float breaking table is required.
- List coated-glass processing, automatic labelling and special-shape scanning requirements before quotation.
- Electrical supply, compressed air, installation access, operator training, spares and export packing are confirmed for each order.
Choose the level of automation your factory needs.
These figures are taken from the supplied configuration sheets. Final dimensions, installed power, voltage, functions and packing are confirmed in the approved quotation.
CNC2721
- Maximum glass
- 2700 x 2100 mm
- Thickness
- 3-19 mm
- Configuration
- Approx. 3660 x 3185 x 1600 mm; installed power about 6 kW.
- Performance
- Up to 200 m/min; accuracy <= +/-0.3 mm/m before breakout.
YTJ2721
- Maximum glass
- 2700 x 2100 mm
- Thickness
- 3-18 mm
- Configuration
- Approx. 4700 x 3855 x 1600 mm; installed power about 12 kW.
- Performance
- Automatic loading with breakout rods; accuracy <= +/-0.3 mm/m.
CNC3826
- Maximum glass
- 3660 x 2440 mm
- Thickness
- 3-19 mm
- Configuration
- Approx. 4860 x 3660 x 1630 mm; installed power about 8 kW.
- Performance
- Up to 200 m/min; accuracy <= +/-0.3 mm/m before breakout.
YTJ3829
- Maximum glass
- 3660 x 2800 mm
- Thickness
- 3-18 mm
- Configuration
- Approx. 3790 x 4925 x 1600 mm; installed power about 14.2 kW.
- Performance
- Automatic loading and cutting; accuracy <= +/-0.3 mm/m.
YTJ3829 + breaking table
- Maximum glass
- 3660 x 2800 mm
- Thickness
- 3-18 mm
- Configuration
- Approx. 5780 x 4925 x 1600 mm total; installed power about 17.2 kW.
- Performance
- Separate air-float breaking table with one horizontal and two vertical rods.
LSX4228
- Maximum glass
- 4200 x 2800 mm
- Thickness
- 3-19 mm
- Configuration
- Automatic loading, CNC cutting, conveying and dedicated breaking table.
- Performance
- Cutting accuracy +/-0.20 mm/m; cutting unit about 6.5 kW.
LSX6133
- Maximum glass
- 6100 x 3300 mm
- Thickness
- 3-19 mm
- Configuration
- 12 loading arms, CNC cutting, conveying and three-rod breaking table.
- Performance
- Cutting accuracy +/-0.20 mm/m; cutting unit power 12.6 kW.
Technical overview.
Use this summary to prepare an inquiry. Final values, tolerances and compliance requirements are confirmed in the written quotation and approved drawing.
- Model families
- CNC2721, YTJ2721, CNC3826, YTJ3829, LSX4228 and LSX6133.
- Maximum glass size
- 2700 x 2100 mm to 6100 x 3300 mm, depending on model.
- Glass thickness
- 3-19 mm across the documented range; some integrated configurations are specified for 3-18 mm.
- Cutting speed
- Cutting head and bridge speed up to 200 m/min in the documented configurations.
- Cutting accuracy
- Up to +/-0.3 mm/m for compact models and +/-0.20 mm/m for LSX cutting lines, before breakout.
- Compressed air
- Normally 0.6-0.8 MPa for compact models; final consumption and pressure are confirmed by configuration.
- Core functions
- Optimization, automatic edge finding, special-shape scanning, pressure control, oil supply and servo direct drive.
- Typical users
- Architectural glass, insulated-glass, tempering, furniture, mirror and custom-processing factories.
Frequently asked questions.
These answers explain the normal selection process. Send the project drawing or sample when a definitive technical answer is required.
Should I choose a standalone table, an integrated machine or a complete line?
Choose a standalone CNC table when loading and breakout equipment already exist. An integrated YTJ machine reduces manual sheet handling in a compact area. An LSX line is intended for higher-volume flow with automatic loading, conveying and a separate breaking table.
What is the difference between the two YTJ3829 configurations?
The compact version uses ejector-pin assistance on the integrated table. The longer configuration adds a separate air-float breaking table and needs more floor space, but creates a clearer loading, cutting and breakout flow.
Can the machine remove Low-E coating or apply labels?
Optional automatic labelling and Low-E edge-deletion packages are available for compatible configurations. Confirm coating type, deletion width and label workflow before quotation.
What is needed for an accurate equipment proposal?
Provide stock-sheet sizes, thickness range, glass types, target output, loading preference, factory layout, electrical standard, compressed-air supply and delivery destination.
